Production Process of Customizing a Super-Sized 5083 Aluminum Forged Pipe

In response to the specific requirements of our client, we successfully customized a super-sized 5083 aluminum alloy forged pipe with a length of 1.2 meters. The stringent dimensional specifications and high production difficulty posed significant challenges, testing not only the material properties but also the precision of our process control and equipment capabilities.

1. Requirement Analysis and Plan Development
The client set strict requirements for the forged pipe: an exceptionally large diameter, high dimensional accuracy, and a special length of 1.2 meters. These specifications made the production process particularly challenging, not only in terms of achieving uniformity for the oversized diameter but also in addressing the technical limitations of forging such a long pipe.
After multiple discussions with the client, we developed a customized production plan and selected 5083 aluminum alloy as the raw material to ensure the product's mechanical properties and corrosion resistance.

2. Material Selection
5083 aluminum alloy is renowned for its excellent strength, corrosion resistance, and weldability, making it an ideal choice for marine engineering, pressure vessels, and large structural components. We sourced high-quality 5083 aluminum alloy billets to ensure that the chemical composition and metallurgical quality met the required standards, guaranteeing product performance from the outset.

3. Forging Process Control
Forging a pipe with such a large diameter and a length of 1.2 meters demands exceptional process control capabilities. For this project, we implemented the following critical measures:
●Heating: The 5083 aluminum billet was heated to the optimal forging temperature range, avoiding overheating that could lead to coarse grain structure or underheating that could hinder deformation. This ensured the material was deformed within its plastic range.
●Forging Process:

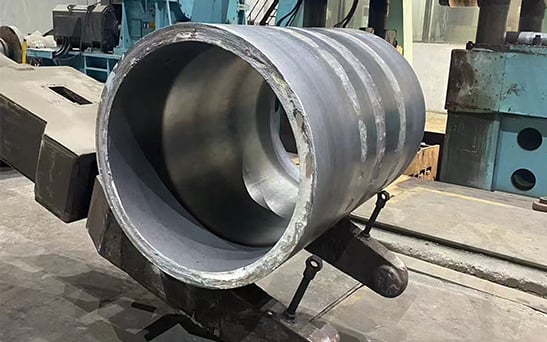

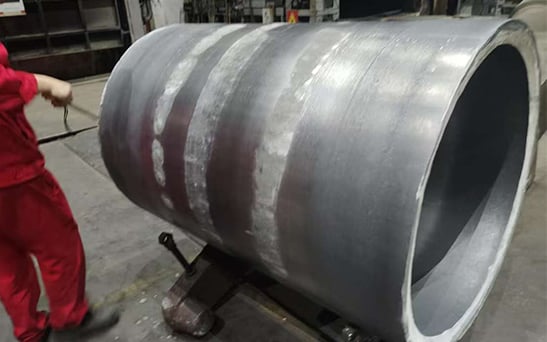

A large hydraulic press was used to gradually expand and shape the pipe, with precise control of forging pressure and deformation speed to ensure uniform grain distribution within the material.
Multiple intermediate heat treatments were performed to eliminate potential stress concentrations and microcracks during forging, further enhancing the material's overall performance.

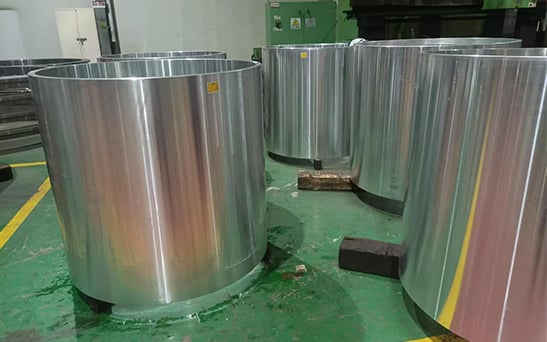

●Dimensional Control: After forging, precision measurement equipment was employed to correct any dimensional deviations step by step, ensuring that the final product met the client’s accuracy requirements.

4. Quality Inspection
After the forging process, we conducted comprehensive quality inspections on the forged pipe to ensure both internal and external quality:
●Ultrasonic Testing: Ensured that the pipe was free of internal cracks, voids, or impurities.
●Dimensional Measurement: Conducted multi-point measurements of the diameter and length to ensure that deviations were within the client’s specified range.
●Mechanical Property Testing: Verified that the pipe’s strength and toughness met the required standards.
Through rigorous quality inspections, the product successfully passed the client’s acceptance criteria.

5. Client Delivery
Finally, we completed the production of the super-sized forged pipe on schedule. The product met the client’s expectations in terms of dimensions, performance, and appearance, earning high praise. This project not only demonstrated our technical expertise in manufacturing large forged components but also provided valuable experience for future projects.
