7A04 Aluminum Round Bar

◆TYPE: Extruded aluminium rod

◆TEMPER: T6

◆DIAMETER: 10-420mm (ready stock)

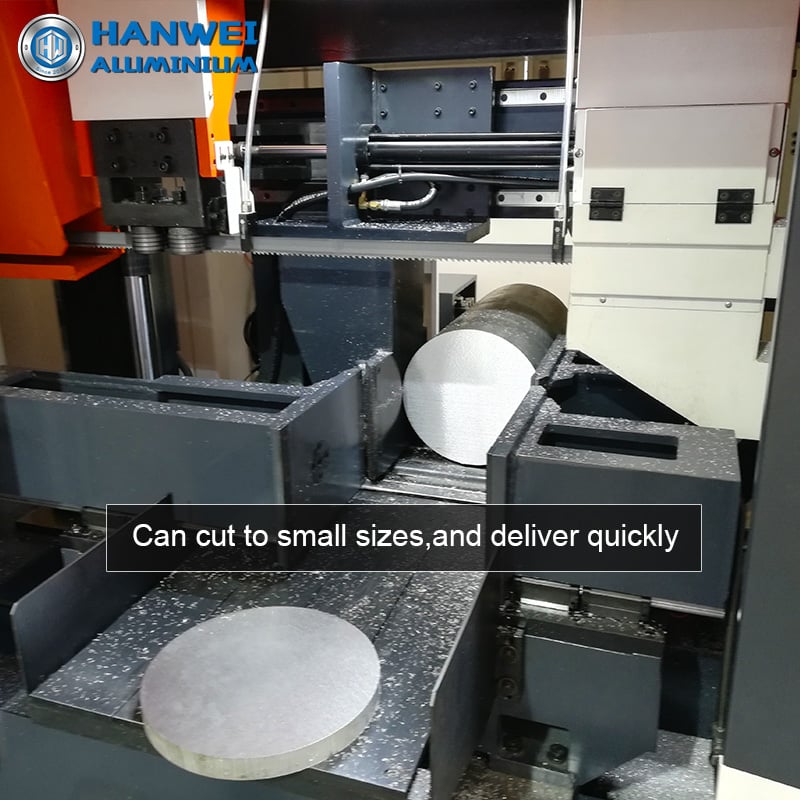

◆LENGTH: 3000mm, Cut to short size ( φ≥ 30mm )

◆OTHERS: Material traceability, Mass-stock，Fast shippment

Introduction

Chemical composition of 7A04 aluminum alloy

●Aluminum (Al): balance
●Silicon (Si): 0.5% max
●Ferrum (Fe): 0.5% max
●Copper (Cu): 1.4-2.0%
●Manganese (Mn): 0.2-0.6%
●Magnesium (Mg): 1..8-2.8%
●Chromium (Cr): 0.1-2.5%
●Zinc (Zn): 5.0-7.0%
●Titanium (Ti): 0.1% max
●Other elements: Each 0.05% max, Total 0.1% max

Typical mechanical properties of 7A04 T6 aluminum
For aluminum rod 7A04 T4: φ22-150mm

Grade	Temper	Tensile Strength	Yield strength	Elongation	Hardness
7A04	T6	510	430	7	138

(The values are typical or min values,for reference only.)

7A04 aluminum round bar application

7A04 aluminum rod is a high-strength alloy that is commonly used in various applications where strength and durability are critical. Some common applications of 7A04 aluminum rod include:Aerospace Industry/ Automotive Industry/Defense IndustryConstruction Industry

Overall, 7A04 aluminum alloy rod is widely used in applications where high strength, durability, and resistance to corrosion are required.
