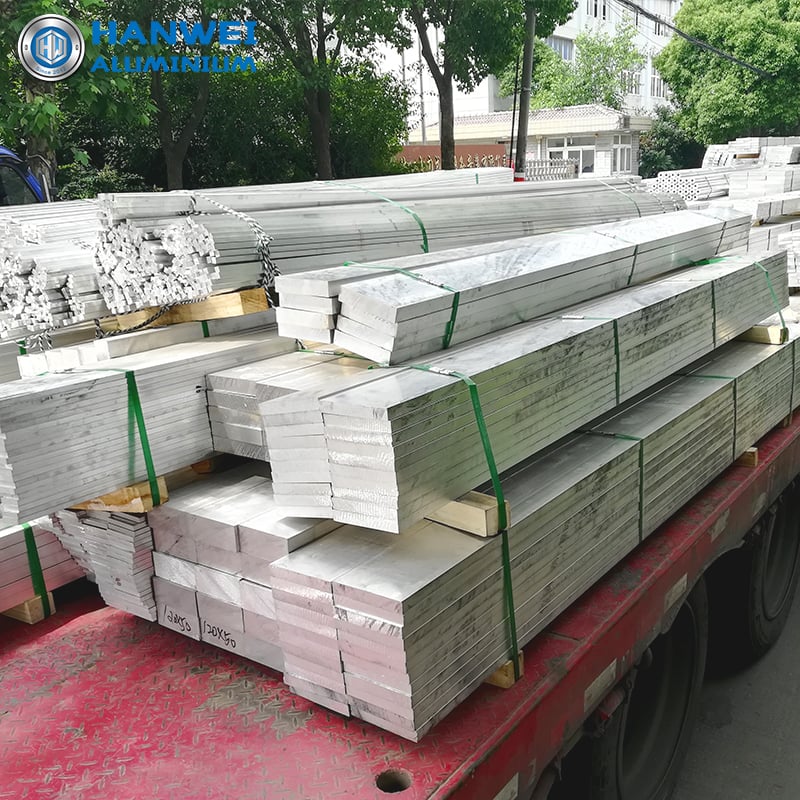

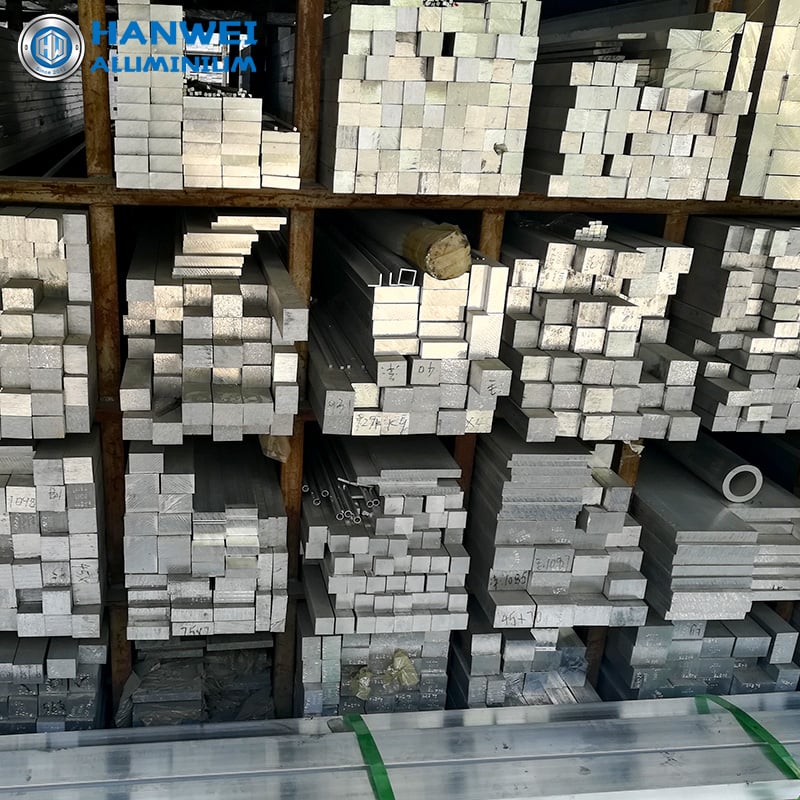

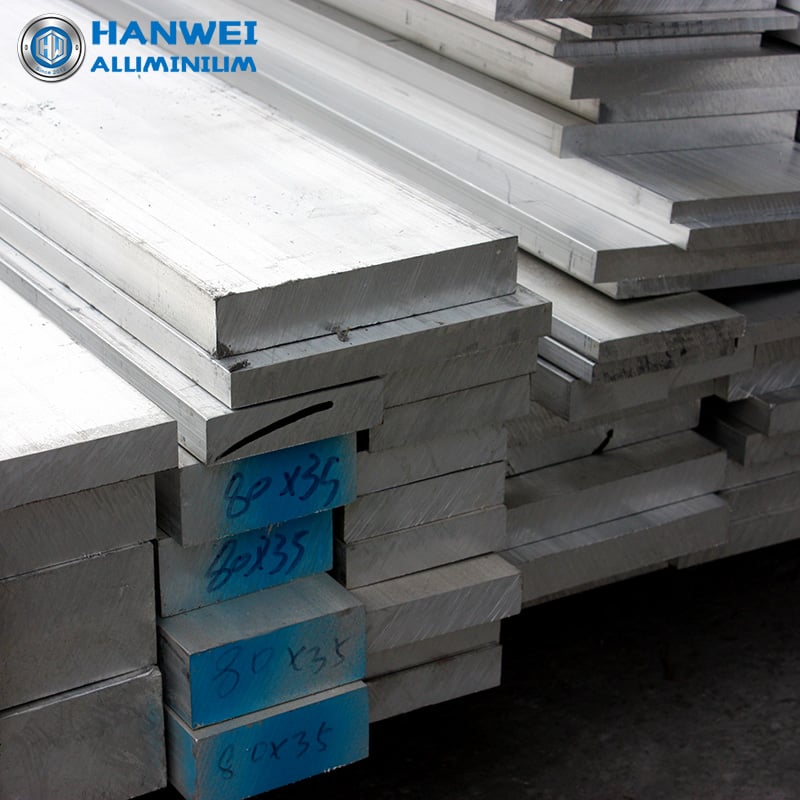

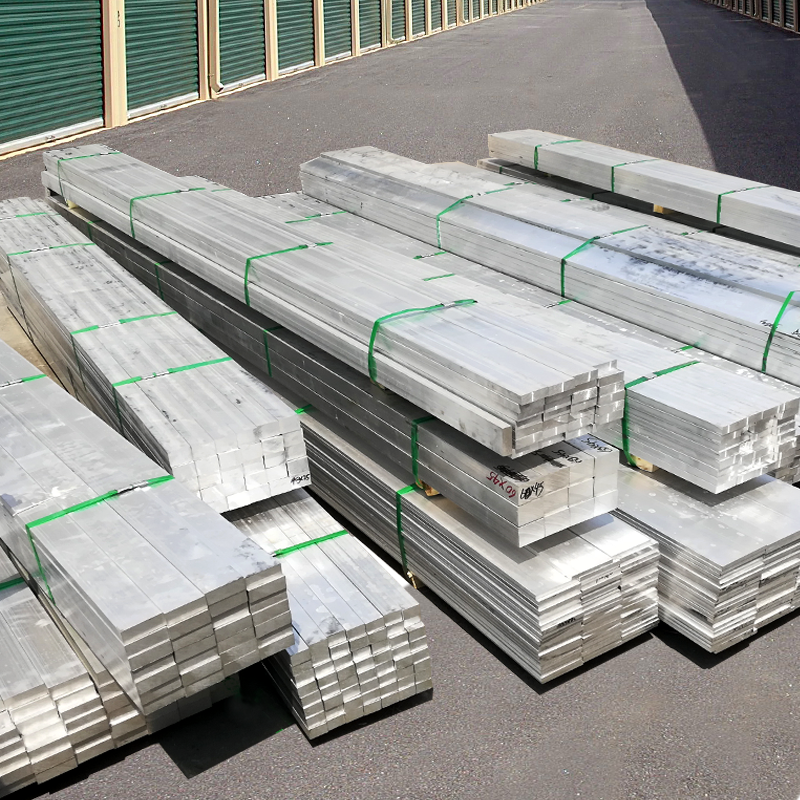

Aluminum Flat Bar 6061

Chemical composition of 6061 aluminum alloy

●Aluminum (Al): balance
●Silicon (Si): 0.4-0.8%
●Ferrum (Fe): 0.7% max
●Copper (Cu): 0.15-0.4%
●Manganese (Mn): 0.15% max
●Magnesium (Mg): 0.8-1.2%
●Chromium (Cr): 0.04-0.35%
●Zinc (Zn): 0.25% max
●Titanium (Ti): 0.15% max
●Other elements: Each 0.05% max, Total 0.15% max

Typical mechanical properties of 6061 T6 aluminum
For aluminum bar 6061 T6: ≤150x150mm

●Tensile strength: ≥ 260 MPa
●Yield strength: ≥240 MPa
●Elongation: ≥8%
●Hardness (Brinell): 80 HB

(The values are typical or min values,for reference only.)

6061 aluminum sheet plate application

6061 aluminum alloy rod is known for its excellent corrosion resistance, high strength-to-weight ratio, good machinability, and good anodizing performance.

6061 aluminum round bar is one of the most popular use in various applications, including Automatic machine parts, mobile phone card slot, mobile phone case, mold, automobile, precision machining, mold manufacturing, electronics and precision instruments, structural engineering, and so on. 6061 T6 aluminum bar is very high cost.
