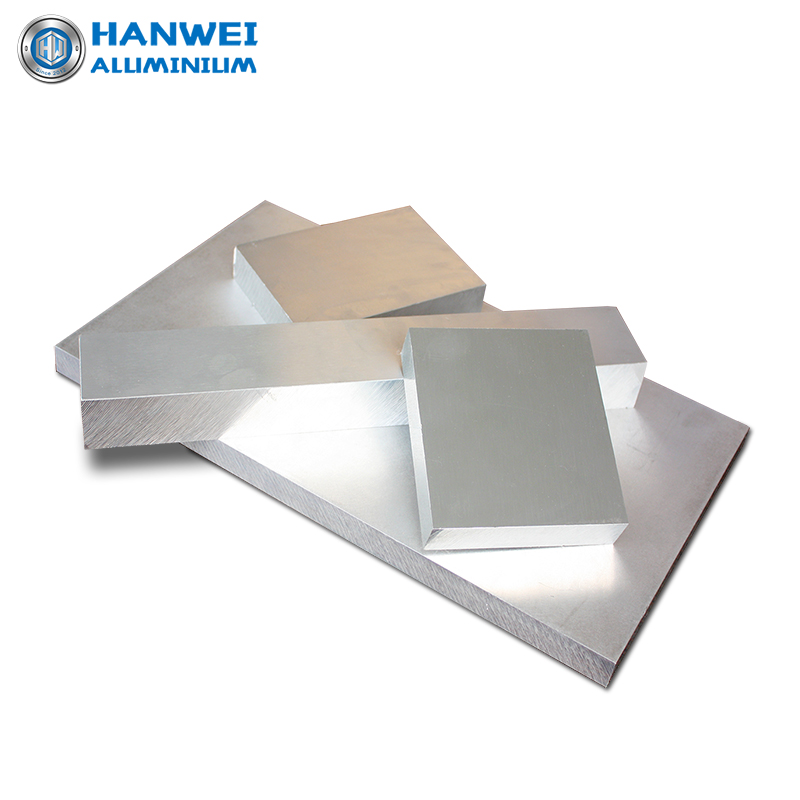

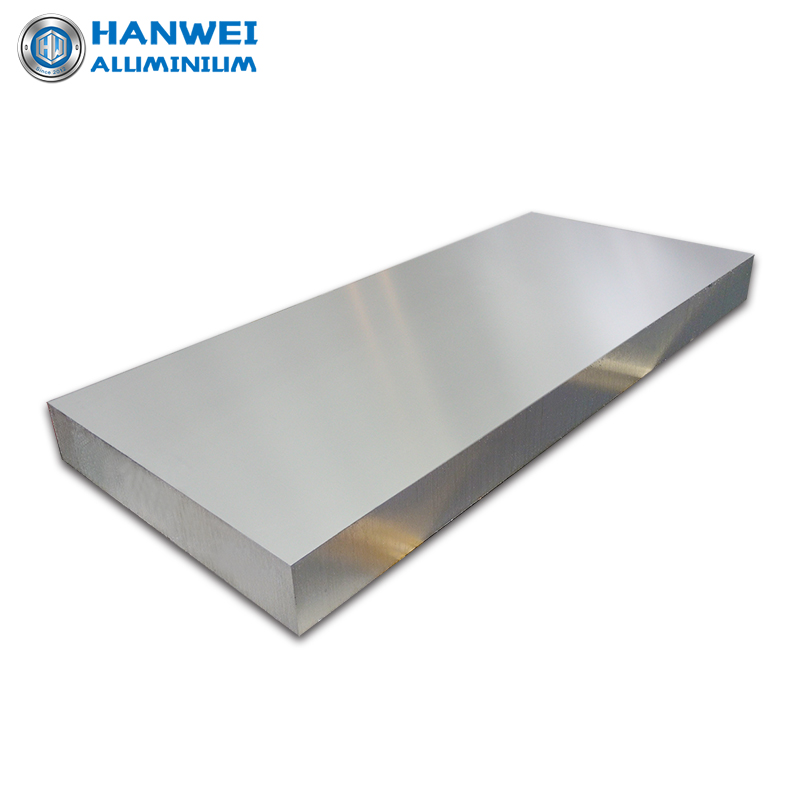

7075 T651 Aluminum Plate

Chemical composition of 7075 aluminum alloy

●Aluminum (Al): balance
●Silicon (Si): 0.4% max
●Ferrum (Fe): 0.5% max
●Copper (Cu): 1.2-2.0%
●Manganese (Mn): 0.3% max
●Magnesium (Mg): 2.1-2.9%
●Chromium (Cr): 0.18-0.28%
●Zinc (Zn): 5.1-6.1%
●Titanium (Ti): 0.2% max
●Other elements: Each 0.05% max, Total 0.15% max

Typical mechanical properties of 7075 T651 aluminum

 (The values are typical or min values,for reference only.)

7075 aluminum sheet plate application

7075 aluminum is one of the strongest aluminum alloys.with corrosion resistance,durability,and good Machinability.

Aluminum plate 7075 T651 use for：
Aerospace industry:  aircraft fuselages, wings, and other structural components.
Military equipment: weapons and armor, because of its high strength and durability.
High-stress applications: bicycle frames, rock climbing equipment, and automotive parts.
Sporting goods: golf heads, ski poles baseball bats and tennis rackets.
3C products,tooling and machining.

Overall, 7075 aluminum plate is a versatile material that offers high strength and toughness, making it suitable for a wide range of applications.

7075 T6 VS T651 / Why choose 7075T651?

7075 T651 is a certain amount of stretching and flatting on the basis of T6 temper .Reduced the internal stress, not easy to deform when processing.
In general, if there are no precise requirements for dimensional stability and elastic allowance, aluminum alloy 7075 T6 is good enough; If for the precision workpiece, in order to avoid the processing of elastic recovery and size can not maintain stability, it is necessary to choose 7075 T651,Such as 3C products,Precision parts.
