6063 Aluminum Round Bar

◆TYPE: Extruded aluminium rod

◆TEMPER: T6

◆DIAMETER: 10-200mm (ready stock)

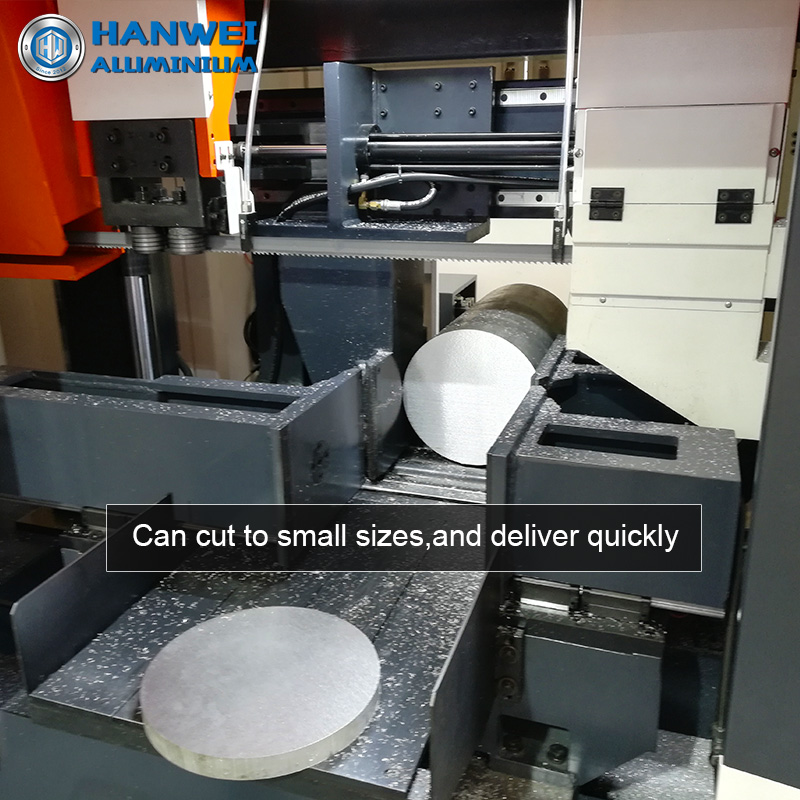

◆LENGTH: 3000mm, Cut to short size ( φ≥ 30mm )

◆OTHERS: Material traceability, Mass-stock，Fast shippment

Introduction

Chemical composition of 6063 aluminum alloy

●Aluminum (Al): balance
●Silicon (Si): 0.4-0.6%
●Ferrum (Fe): 0.35% max
●Copper (Cu): 0.1% max
●Manganese (Mn): 0.1% max
●Magnesium (Mg): 0.45-0.9%
●Chromium (Cr): 0.1% max
●Zinc (Zn): 0.1% max
●Titanium (Ti): 0.1% max
●Other elements: Each 0.05% max, Total 0.15% max

Typical mechanical properties of 6063T6 aluminum
For aluminum rod 6063 T6:<150mm

Grade	Temper	Tensile Strength	Yield strength	Elongation	Hardness
6063	T6	240	215	12	73

(The values are typical or min values,for reference only.)

6063 aluminum round bar application

6063 aluminum alloy rod is known for its excellent corrosion resistance, high strength-to-weight ratio, good machinability, and good anodizing performance.

6063 aluminum round bar is one of the most popular use in various applications, including Automatic machine parts, mobile phone card slot, mobile phone case, mold, automobile, precision machining, mold manufacturing, electronics and precision instruments, structural engineering, and so on.
