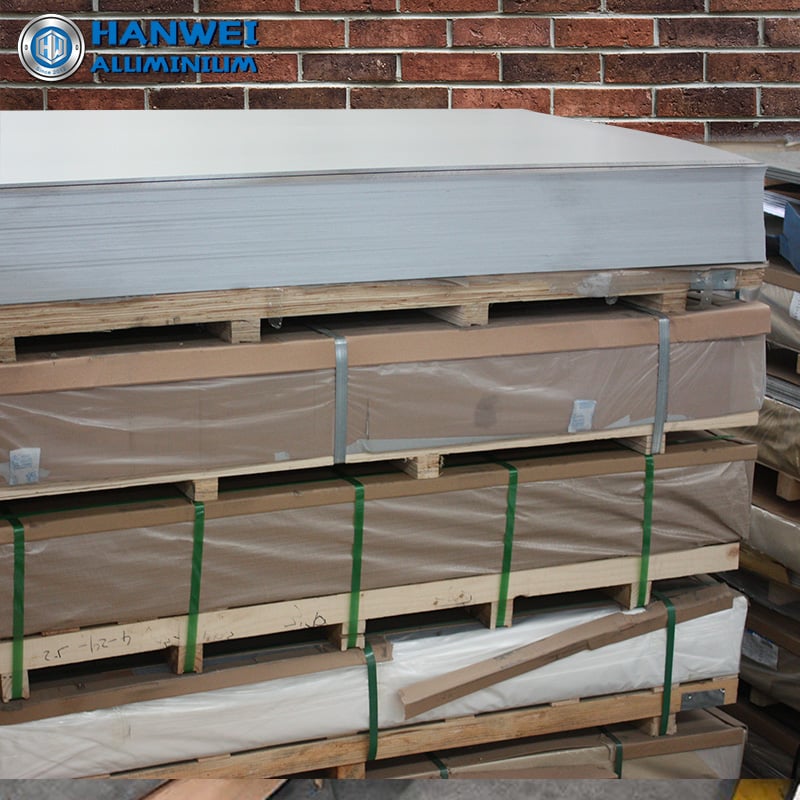

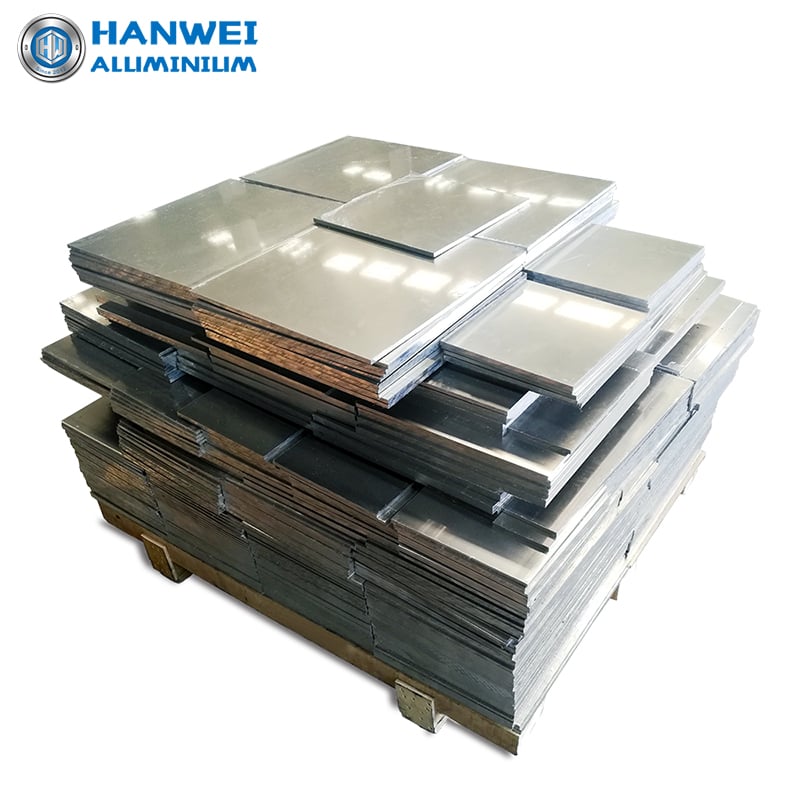

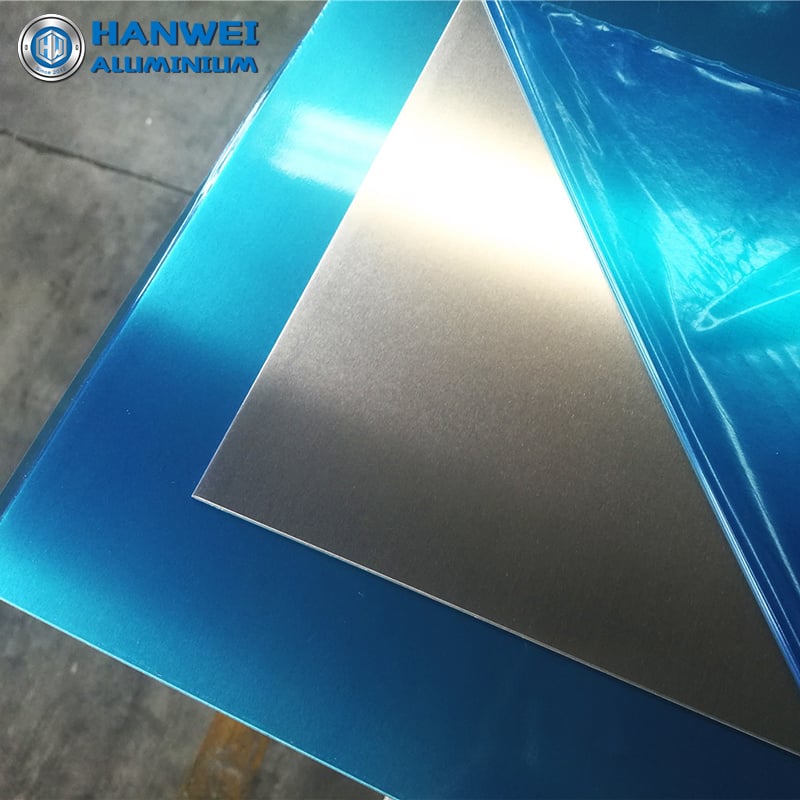

5754 Aluminum Sheet Plate

◆TEMPER: O/H111,H112

◆THICKNESS: 1-30mm (ready stock)

◆WIDTH: 1250-1500mm ; LENGTH: 2500-3000mm

◆CUTTING: Cut to size ( ≥8 mm thickness)

◆OTHERS: Material traceability, Mass-stock，Fast shippment

Introduction

Chemical composition of 5754 aluminum alloy

●Aluminum (Al): balance
●Silicon (Si): 0.4% max
●Ferrum (Fe): 0.4% max
●Copper (Cu): 0.1% max
●Manganese (Mn): 0.5% max
●Magnesium (Mg): 2.6-3.6%
●Chromium (Cr): 0.3% max
●Zinc (Zn): 0.2% max
●Titanium (Ti): 0.15% max
●Other elements: Each 0.05% max, Total 0.10% max

Typical mechanical properties of 5754 aluminum

Grade	Temper	Tensile Strength	Yield strength	Elongation	Hardness
5754	O/H111	195	85	18	48
5754	H112	200	100	12	49

(The values are typical or min values,for reference only.)

5754 aluminum sheet plate application

5754 trace elements mainly magnesium aluminum alloy, medium strength representative, good weldability, good workability, especially high fatigue strength, good corrosion resistance to seawater. Used for office equipment, cameras, vehicle and ship sheet metal parts, enclosures,instrument and apparatus,etc.
