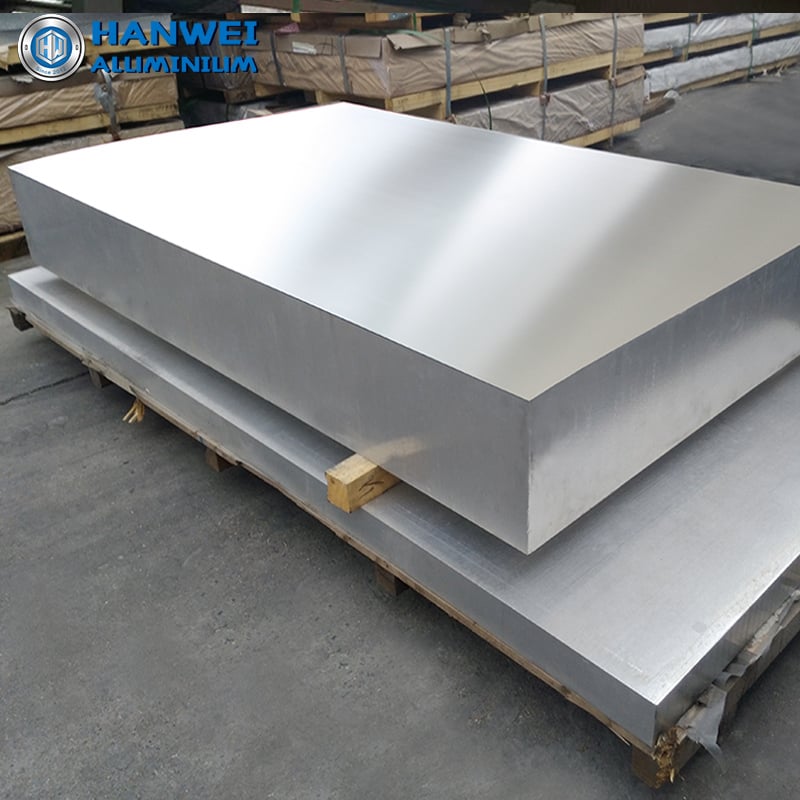

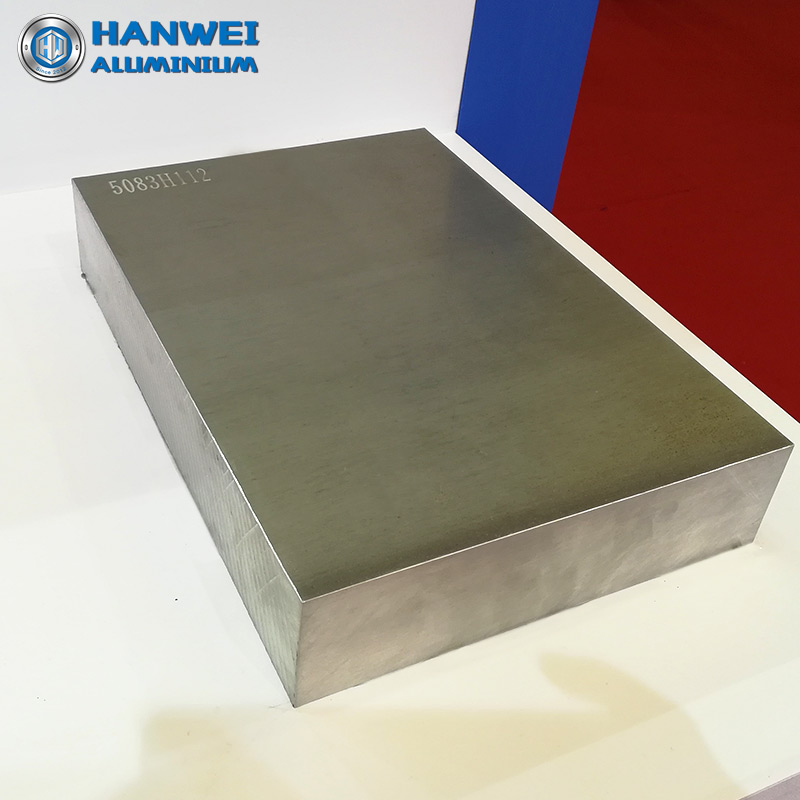

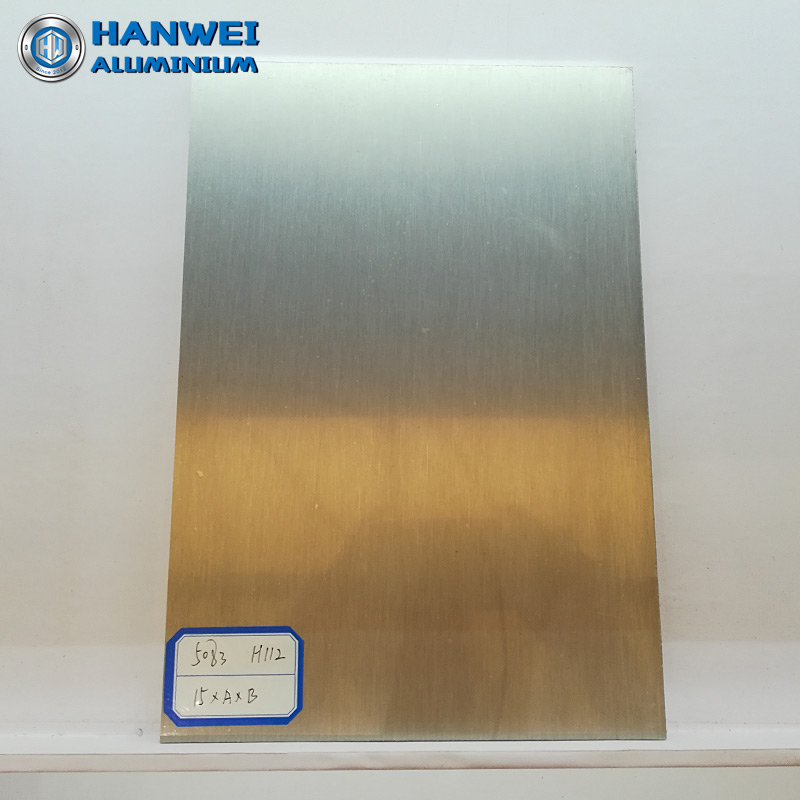

5083 Aluminum Sheet Plate

Chemical composition of 5083 aluminum alloy

●Aluminum (Al): balance
●Silicon (Si): 0.4%
●Ferrum (Fe): 0.4% max
●Copper (Cu): 0.1%
●Manganese (Mn): 0.4-1.0% max
●Magnesium (Mg): 4.0-4.9%
●Zinc (Zn): 0.25% max
●Titanium (Ti): 0.15% max
●Other elements: Each 0.05% max, Total 0.15% max

Typical mechanical properties of 5083 aluminum

(The values are typical or min values,for reference only.)

5083 aluminum sheet plate application

5083 aluminum plate has high strength, corrosion resistance and light weight. The content of magnesium in the trace elements of 5083 is higher. In the non-heat treatment alloy, the hardness is higher. Good seawater resistance and low temperature, suitable for welding structures with high corrosion resistance.

5083 Aluminum sheet Suitable for ships and boats,5083 aluminum plate is used for vehicles: aluminum alloy tank car body/tank, automobile fuel tank, air storage tank, bus skin, C82 coal truck, car roof/bottom protection plate, etc.

5083 thick aluminum plate is used for: mould, LNG storage tank, flange material, GIS high voltage switch shell, precision machining, etc.
