5056 Aluminum Round Rar

◆TYPE: Extruded aluminium rod

◆TEMPER: H112

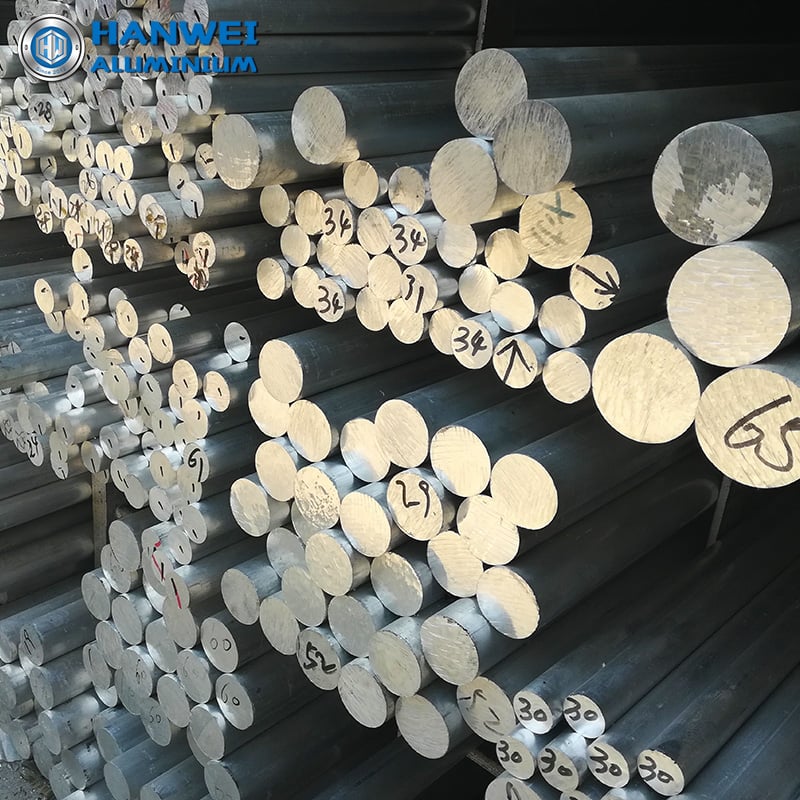

◆DIAMETER: 10-160 mm (ready stock)

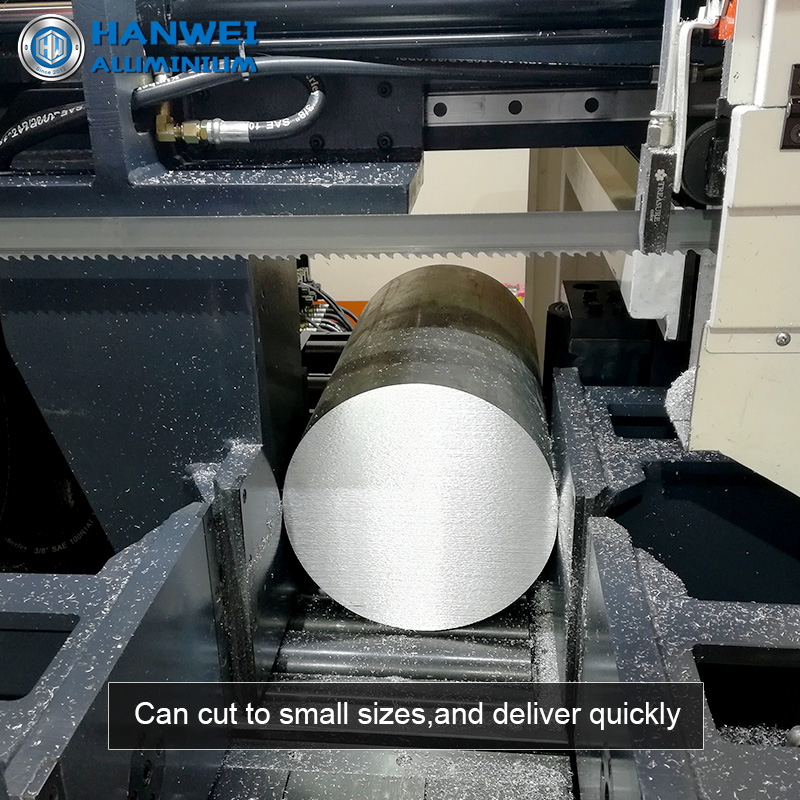

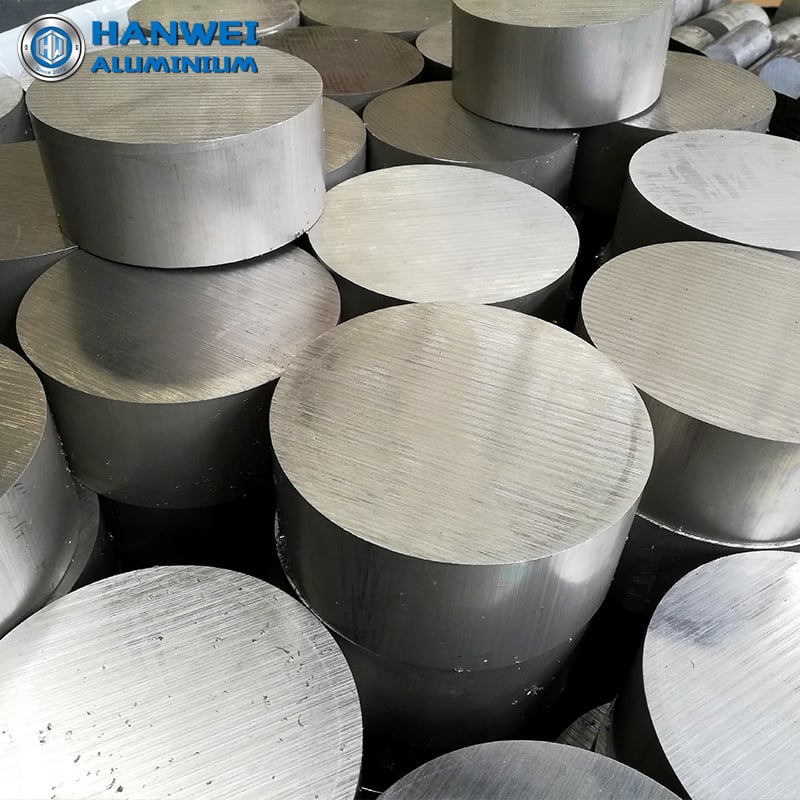

◆LENGTH: 2500/3000mm, Cut to short size ( φ≥ 30mm )

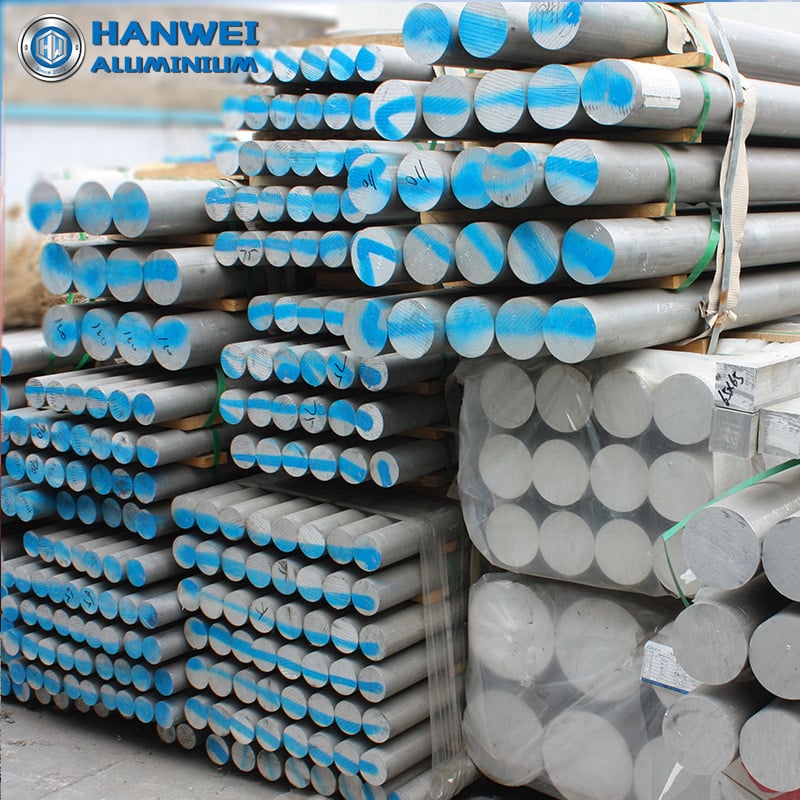

◆OTHERS: Material traceability, Mass-stock，Fast shippment

Introduction

Chemical composition of 5056 aluminum alloy

●Aluminum (Al): balance
●Silicon (Si): 0.3% max
●Ferrum (Fe): 0.4% max
●Copper (Cu): 0.1% max
●Manganese (Mn): 0.05-0.2%
●Magnesium (Mg): 4.5-5.6%
●Chromium (Cr): 0.05-0.2%
●Zinc (Zn): 0.1% max
●Other elements: Each 0.05% max, Total 0.15% max

Typical mechanical properties of 5056 H112 aluminum
For aluminum rod 5056 T4: φ50-100mm

Grade	Temper	Tensile Strength	Yield strength	Elongation	Hardness
5056	T4	294	225	12	78

(The values are typical or min values,for reference only.)

5056 aluminum round bar application

5056 aluminum rod has good corrosion resistance and weldability. Its primary alloying element is magnesium, which gives it its high strength and good machinability.

Common applications of 5056 aluminum rod
Marine: boat hulls and other structures that are exposed to saltwater.
Aerospace: aircraft components and satellite structures.
Automotive parts,Pressure vessels,Welding and brazing,Structural applications
