5052 Aluminum Sheet Plate

◆TEMPER: O,H111,H112,H32

◆THICKNESS: 0.5-120mm (ready stock)

◆WIDTH: 1000-1500mm ; LENGTH: 2000-3000mm

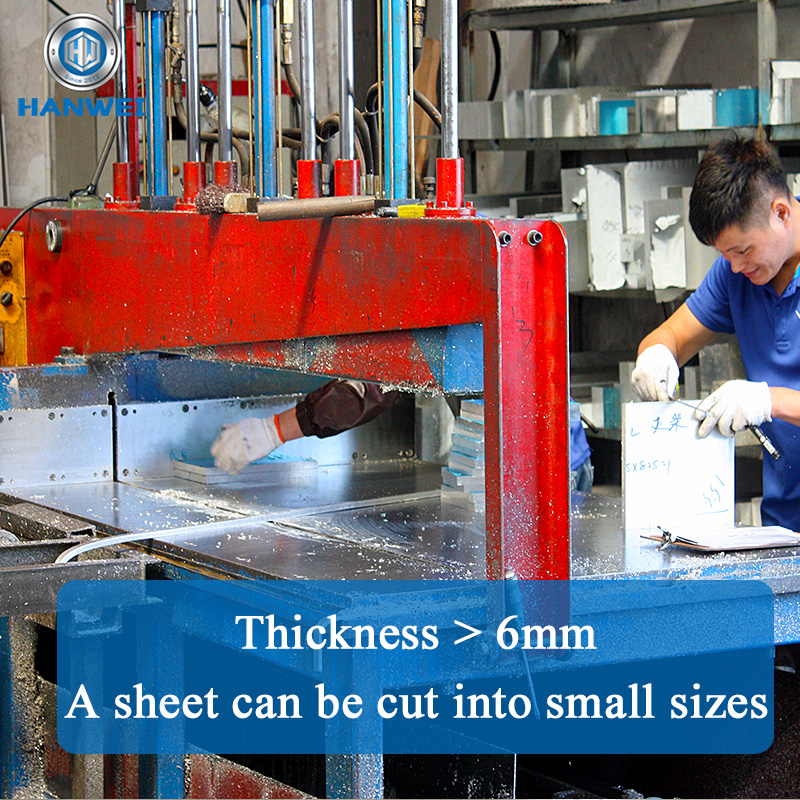

◆CUTTING: Cut to size ( > 6mm thickness)

◆OTHERS: Material traceability, Mass-stock，Fast shippment

Introduction

Chemical composition of 5052 aluminum alloy

●Aluminum (Al): balance
●Magnesium (Mg): 2.2-2.8%
●Chromium (Cr): 0.15-0.35%
●Manganese (Mn): 0.1% max
●Copper (Cu): 0.1% max
●Iron (Fe): 0.4% max
●Zinc (Zn): 0.1% max
●Silicon (Si): 0.25% max
●Titanium (Ti): 0.15% max
●Other elements: Each 0.05% max, Total 0.1% max

Typical mechanical properties of 5052 aluminum alloy plate

Grade	Temper	Tensile Strength	Yield strength	Elongation	Hardness
5052	O	190	80	20	47
5052	H112	195	90	12	48
5052	H32	230	195	10	60

5052 aluminum plate sheet application

5052 aluminum alloy has good formability, weldability, and corrosion resistance，good performance for anodizing.It is one of the most widely used aluminium.

5052 aluminum sheet uses for: automobile, 3C products, computer bracket, building curtain wall panel, suitcase, cans/covers, shutters, rod boxes, aluminum furniture, signs, decoration and so on.

5052 aluminum thick plate uses for: silo, flange material, GIS shell, yacht, underwear mould,tooling, air storage, precision machining, etc.

Commonly used：5052 -O, 5052 H111，5052 H112 aluminum sheet，5052 H32 aluminium plate.
