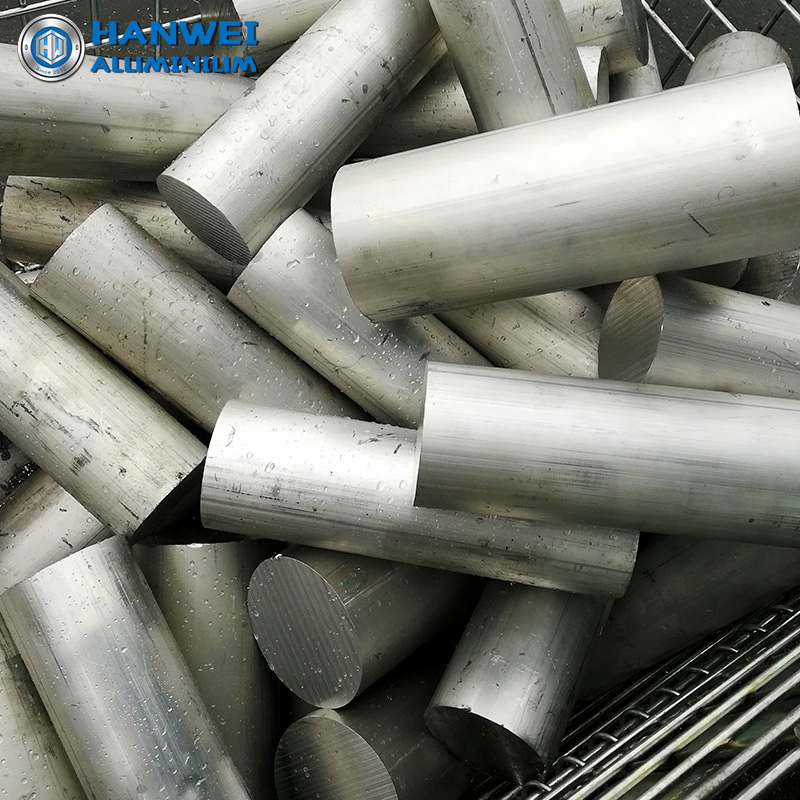

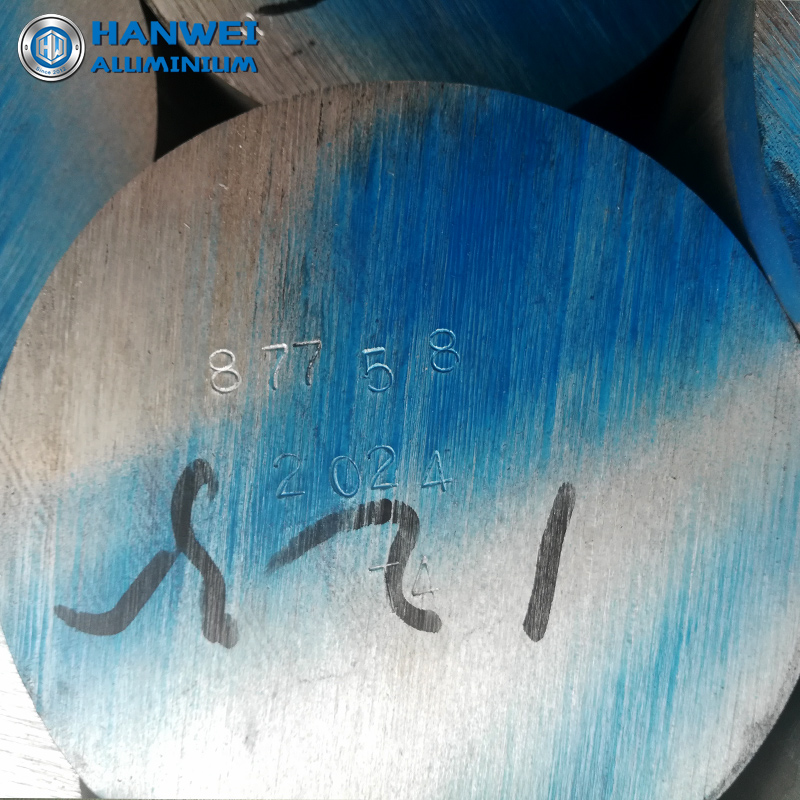

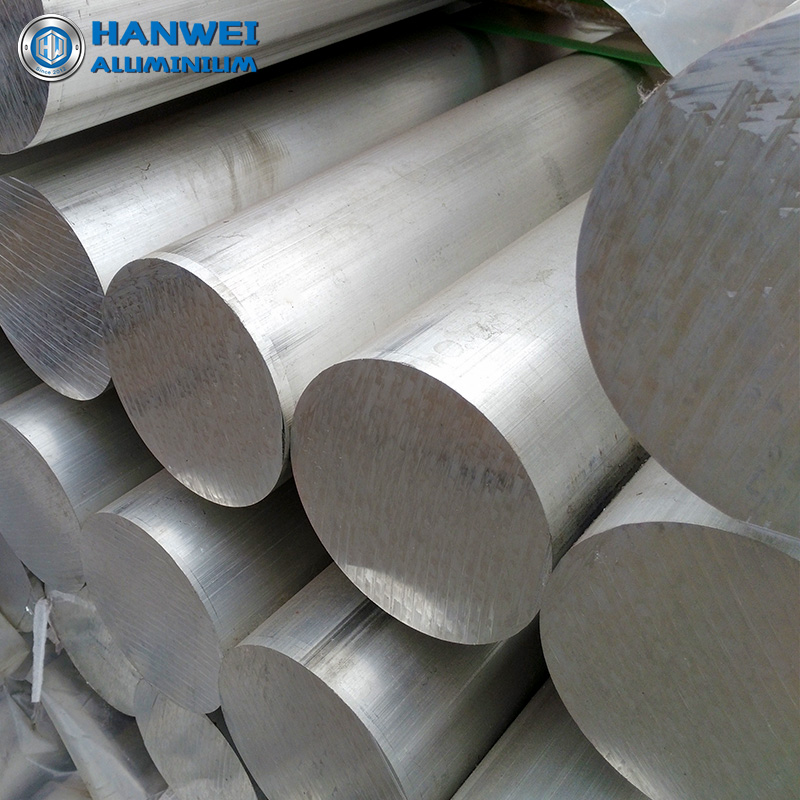

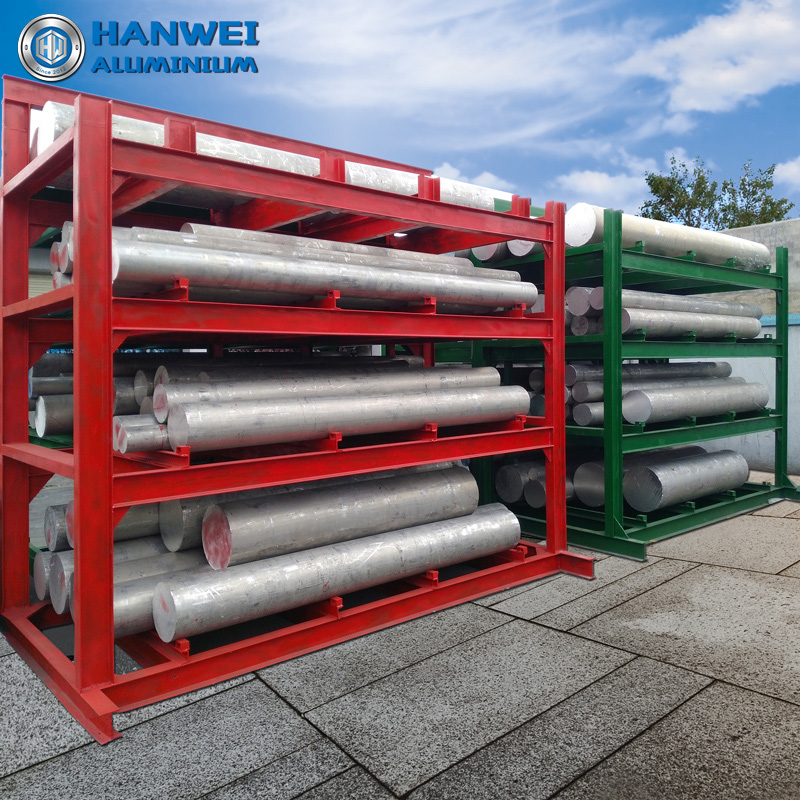

2024 Aluminum Round Bar

◆TYPE: Extruded aluminium rod

◆TEMPER: T4 H112

◆DIAMETER: 10-420mm (ready stock)

◆LENGTH: 3000mm, Cut to short size ( φ≥ 30mm )

◆OTHERS: Material traceability, Mass-stock，Fast shippment

Introduction

Chemical composition of 2024 aluminum alloy

●Aluminum (Al): balance
●Silicon (Si): 0.5% max
●Ferrum (Fe): 0.5% max
●Copper (Cu): 3.8-4.9%
●Manganese (Mn): 0.3-0.9%
●Magnesium (Mg): 1.2-1.8%
●Chromium (Cr): 0.1% max
●Zinc (Zn): 0.25% max
●Titanium (Ti): 0.15% max
●Other elements: Each 0.05% max, Total 0.1% max

Typical mechanical properties of 2024T4 aluminum

Grade	Temper	Tensile Strength	Yield strength	Elongation	Hardness
2024	T4	470	325	17	120
2024	H112	450	305	17	118

(The values are typical or min values,for reference only.)

2024 aluminum round bar application

2024 aluminum rod is a high-strength alloy that is commonly used in various applications where strength and durability are critical. Some common applications of 2024aluminum rod include:Aerospace Industry/ Automotive Industry/Defense Industry/ Sports Equipment/Construction Industry

Overall, 2024 aluminum alloy rod is widely used in applications where high strength, durability, and resistance to corrosion are required.
